The Anode Stacker Crane is a special equipment for the carbon block warehouse workshop in the carbon industry. The equipment is mainly composed of bridge, trolley running mechanism, lifting mechanism, guiding device, special combined fixture, control system, electric hoist and so on. Its main purpose is to clamp the carbon blocks in the warehouse through the control system for round-trip stacking, loading and sporadic lifting in the workshop. The clamping direction of carbon block is divided into horizontal and vertical forms, and the fixture structure is divided into pneumatic and self weight forms.

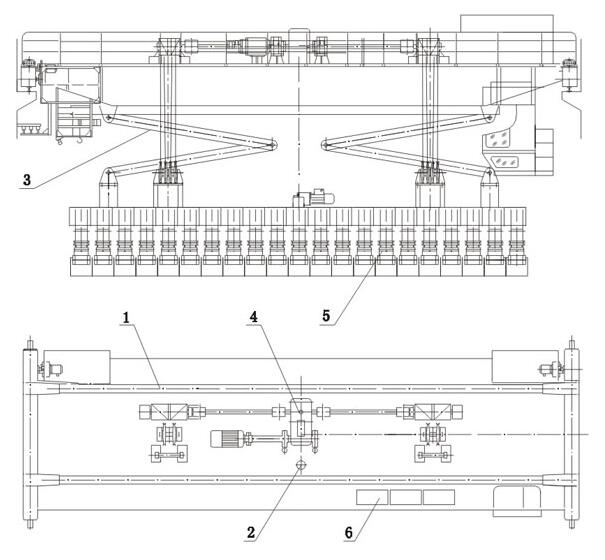

1 - bridge; 2 - lubrication system; 3 - guiding device; 4 - winch system; 5 - fixture; 6 - electric control system
| Structure | Ltemized name | Unit | Verticaljig | Horizontaljig |
| Complete vehicle | Total installed power | Kw | 100-130 | 110-130 |
| Working level | A6-A8 | A6-A8 | ||
| running speed | m/min | 6-60 | 6-60 | |
| Speed regulation mode | frequency conversion | frequency conversion | ||
| Crane bridge | Working level | M6-M8 | M6-M8 | |
| span | m | 13.5-34.5 | 13.5-34.5 | |
| Lifting speed | m/min | 2.5-6 | 2.5-6 | |
| Speed regulation mode | frequency conversion | frequency conversion | ||
| Working level | M6-M8 | M6-M8 | ||
| Lifting capacity | t | 19-26 | 44815 | |
| Main lifting mechanism | Clamp force | kn | ≤33 | ≤33 |
| Support mode | Dead weight connecting rod | Pneumatic interlock | ||
| pressure | mpa | nil | 0.8 | |
| Exhaust volume | m'/min | nil | 4 | |
| fixture | Lifting capacity | t | 44597 | 44597 |
| Lifting speed | m/min | 0.8-8 | 0.8-8 | |
| running speed | m/min | 20 | 20 | |
| Working level | M3 | M3 |
Note: The above technical parameters are for reference
