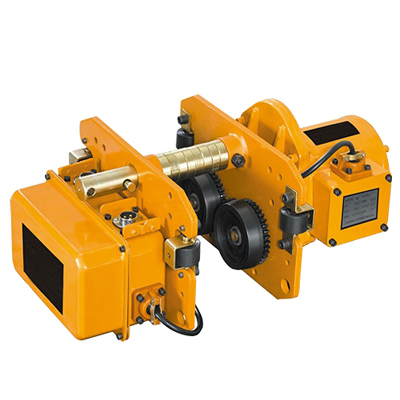

The monorail electric hoist trolley is a light and small lifting equipment. It consists of an electric hoist and an electric trolley. It can walk along a track suspended in the air to lift heavy objects. The electric hoist is the main lifting equipment of the trolley and usually consists of an electric motor, a gear transmission system and a wire rope. It can be lifted, lowered and moved horizontally as needed for carrying and hoisting heavy objects. The mobile trolley is a mobile device used to suspend the electric hoist. It usually consists of an axle, wheels and a driving device. The electric hoist can be moved horizontally along the monorail track to the location where lifting operations are required.
The electric hoist trolley is installed under the electric trolley to form a whole, which can realize movement in both vertical and horizontal directions. Its cables are generally connected to the power supply through sliding wires or cable pulleys to ensure uninterrupted power supply during operation.
The electric hoist trolley is installed under the electric trolley to form a whole, which can realize movement in both vertical and horizontal directions. Its cables are generally connected to the power supply through sliding wires or cable pulleys to ensure uninterrupted power supply during operation.

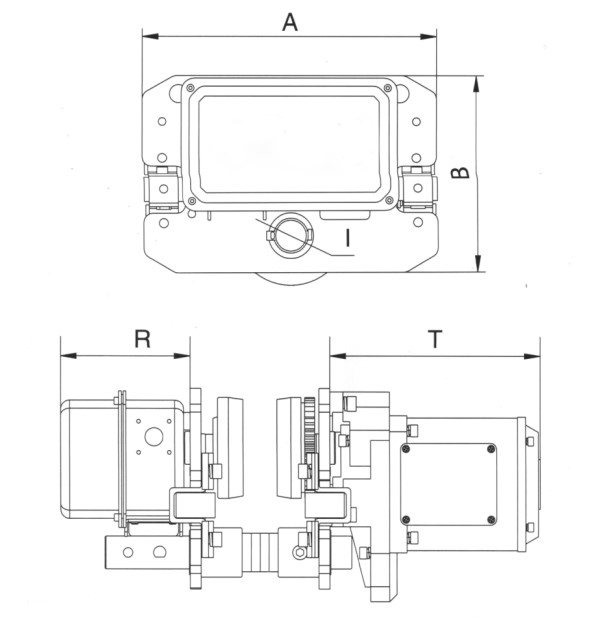

Parameter introduction:
● Rated load: 1 ton, 2 ton, 3 ton or 5 ton
● Running speed: 18m/min or 20m/min
● I-beam range: 74-124mm or 102-152mm
● Motor power: 200 watts, 300 watts, 400 watts or 500 watts
● Rated voltage: 380 volts
● Rated current: 1.5 amps
● Control button voltage: 24V
Product advantages:
● Using a monorail design, the trolley can move freely on the track, which is suitable for narrow working spaces and limited operating conditions.
● Electric hoists usually have a larger load capacity and can meet the needs of handling heavier objects in lifting operations.
● The trolley is usually electric driven and is simple and convenient to operate. The operator can control the movement of the car through the remote control or control panel to improve operating efficiency.
● High safety and reliability in lifting operations.
● The complete maintenance reminder and fault diagnosis system facilitates maintenance and troubleshooting by maintenance personnel.
