DRSA-M Wheel Block System & Crane Wheel

DRSA-M Wheel Block System & Crane Wheel

Coordinated with the DRSA series, The DRSA wheel block comes in four different sizes for wheel loads from 2.75 ton to 10 ton. Finely graded size of DRSA-M become provide the wheel block for more application.

Coordinated with the DRSA series, The DRSA-M wheel block comes in four different sizes for wheel loads from 2.75 ton to 10 ton. Finely graded size of DRSA-M become provide the wheel block for more application.

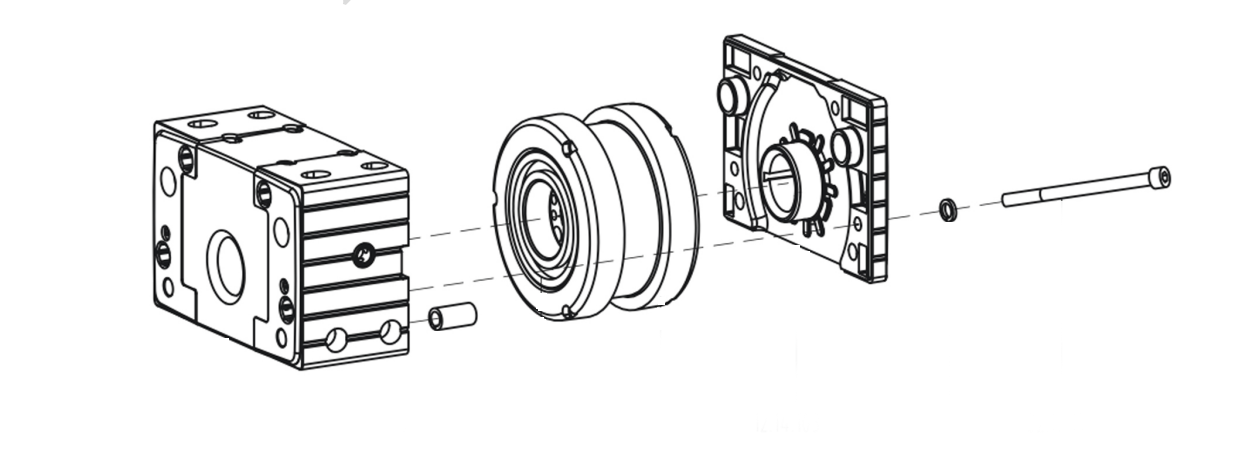

DRSA-M Wheel Block System

Characteristics:

• High-quality spharoidal graphite cast iron housing

• Adapt to be used at temperatures from -20℃ to +60 ℃

• Easy to stall: the installation connection enables wheel blocks to be replaced quickly.

• Multitude connection options


Capacity

(ton)

Weight

(kg)

Splined hub profile

DIN 5480

Bear type

DRSA-M 112

2.75

10

W30x125x30°x22x7H

6207-2Z

DRSA-M 125

5

15

W35x 2x30°x16x7H

6211-2Z

DRSA-M 160

7

26.5

W45x2x30°x21x7H

6215-2Z

DRSA-M 200

10

41.5

W50x2x30°x24x7H

6218-2Z

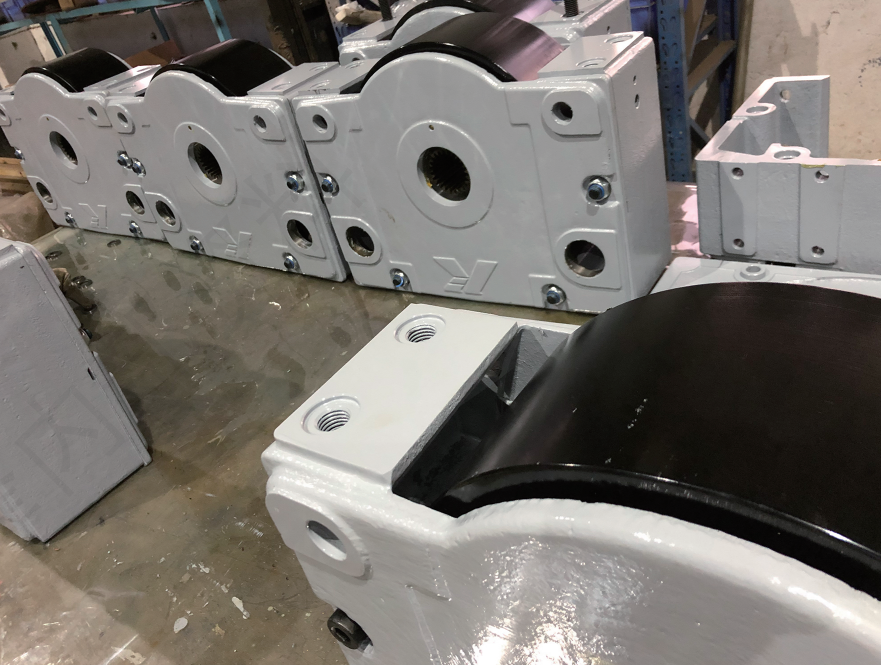

DRSA-M Wheel Block
