Load Turning Devices KF-RE Single Model

• KunFeng
• 148 Hits

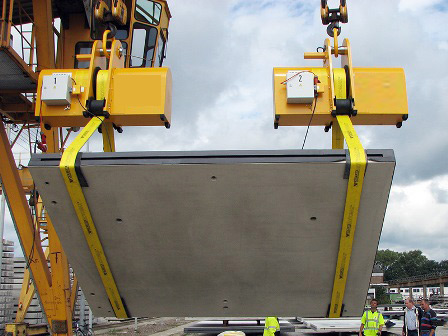

The load turning device is a lifting device designed specifically for turning objects. It is widely used in scenarios where objects need to be turned at any angle.

Product model: KF - RVM manual type

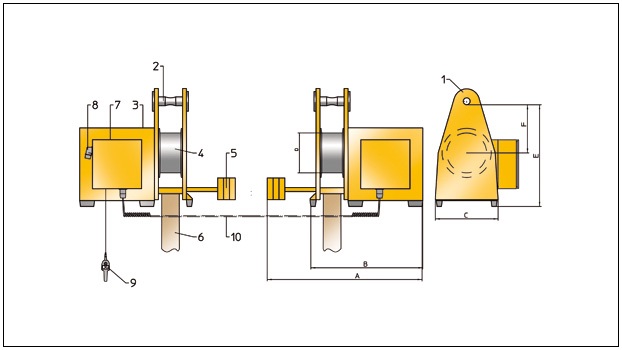

The component of product:

1. The suspension

2. Hang bolt

3. The steel cover shell

4. The drive wheels

5. Counter weight

6. Condole belt or chain

7. Control box

8. 5 hole socket CEE

9. Flashlight door and the line of control

10. Helix (cable)

Scope of supply:

Basic configuration are applied to crane hook hanging eyes, belt line, appliance with switch (left/right and stop), 400 v / 50 hz 3 phase electric, 48 v control voltage, socket with CEE 5 hole. Condole belt spacing can be adjusted manually, weight: 1000kg to 20000kg

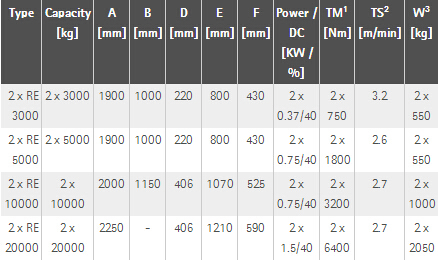

Selection table:

TM - turning torque, TS - turning speed, W - gravity (do not contain condole belt/chain)
