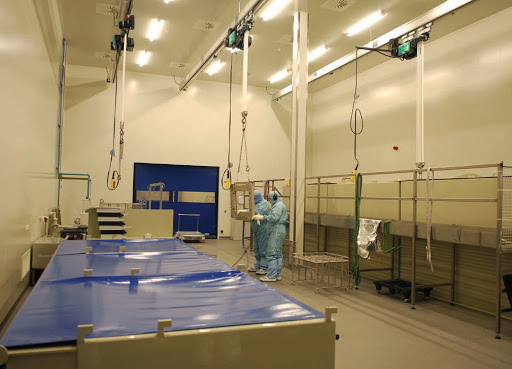

Clean room monorail crane is a type of material handling equipment specially used in clean environments. It adopts a monorail suspension design and uses electric or pneumatic drive to realize horizontal or vertical movement of materials in the clean room. Clean room monorail cranes have the advantages of compact structure, smooth operation, low noise, and easy maintenance. At the same time, they can effectively prevent materials from being contaminated during transportation and ensure the stability and safety of the clean room environment.
The main components of a clean room monorail crane include the track system, drive device, spreader device and control system. The track system is usually made of stainless steel, which has excellent corrosion resistance and anti-pollution performance; the driving device is electric or pneumatic according to specific needs to ensure the stable operation of the crane; the spreader device is customized according to the characteristics and needs of the materials being transported. Such as hooks, hanging baskets, etc.; the control system is responsible for the overall operation control of the crane, including speed adjustment, position positioning and other functions.
Clean room monorail crane installation steps
Before installing a clean room monorail crane, adequate preliminary preparations are required. First, the environment of the clean room must be evaluated to ensure that the installation position and track direction of the crane meet the requirements of the clean room; second, the required installation tools and materials must be prepared, such as screwdrivers, wrenches, track brackets, bolts, etc.; finally , it is necessary to organize a professional installation team to ensure the smooth progress of the installation work.
Track installation is a critical step in cleanroom monorail crane installation. First, determine the direction and position of the track according to the design drawings, and mark it on the ground; then, use track brackets to fix the track at the marked position to ensure the level and verticality of the track; finally, connect and fix the track , ensuring the continuity and stability of the track.
After the track installation is completed, the drive device needs to be installed. First, place the driving device under the track and connect the power and air sources; then, perform wiring and debugging according to the requirements of the driving device to ensure that the driving device can work normally; finally, connect the driving device to the track to ensure the crane's Stable operation.
The installation of the spreader unit is another important step in the installation of a cleanroom monorail crane. First, select the appropriate spreader device according to the characteristics and needs of the materials being transported; then, install the spreader device on the hook of the crane, and conduct necessary debugging and testing; finally, ensure that the spreader device and the crane cooperate well, Able to carry out material handling smoothly.
After the above steps are completed, the installation and debugging of the control system need to be carried out. First, install the control system in a suitable location in the clean room and connect the power supply and signal lines; then, perform parameter setting and programming according to the requirements of the control system; finally, conduct overall debugging and testing of the system to ensure the various functions of the crane able to operate normally.
Installation Precautions
● Strictly abide by the relevant regulations and requirements of clean rooms to ensure that the clean room environment will not be polluted during the installation process.
● Before installation, all parameters of the crane must be carefully checked and inspected to ensure that the crane meets the design requirements and usage requirements.
● During the installation process, pay attention to safety matters, such as wearing protective equipment such as safety helmets and gloves; at the same time, ensure the stability and safety of the crane.
● After the installation is completed, necessary testing and debugging work must be carried out to ensure that the various functions of the crane can operate normally and meet the usage requirements.
