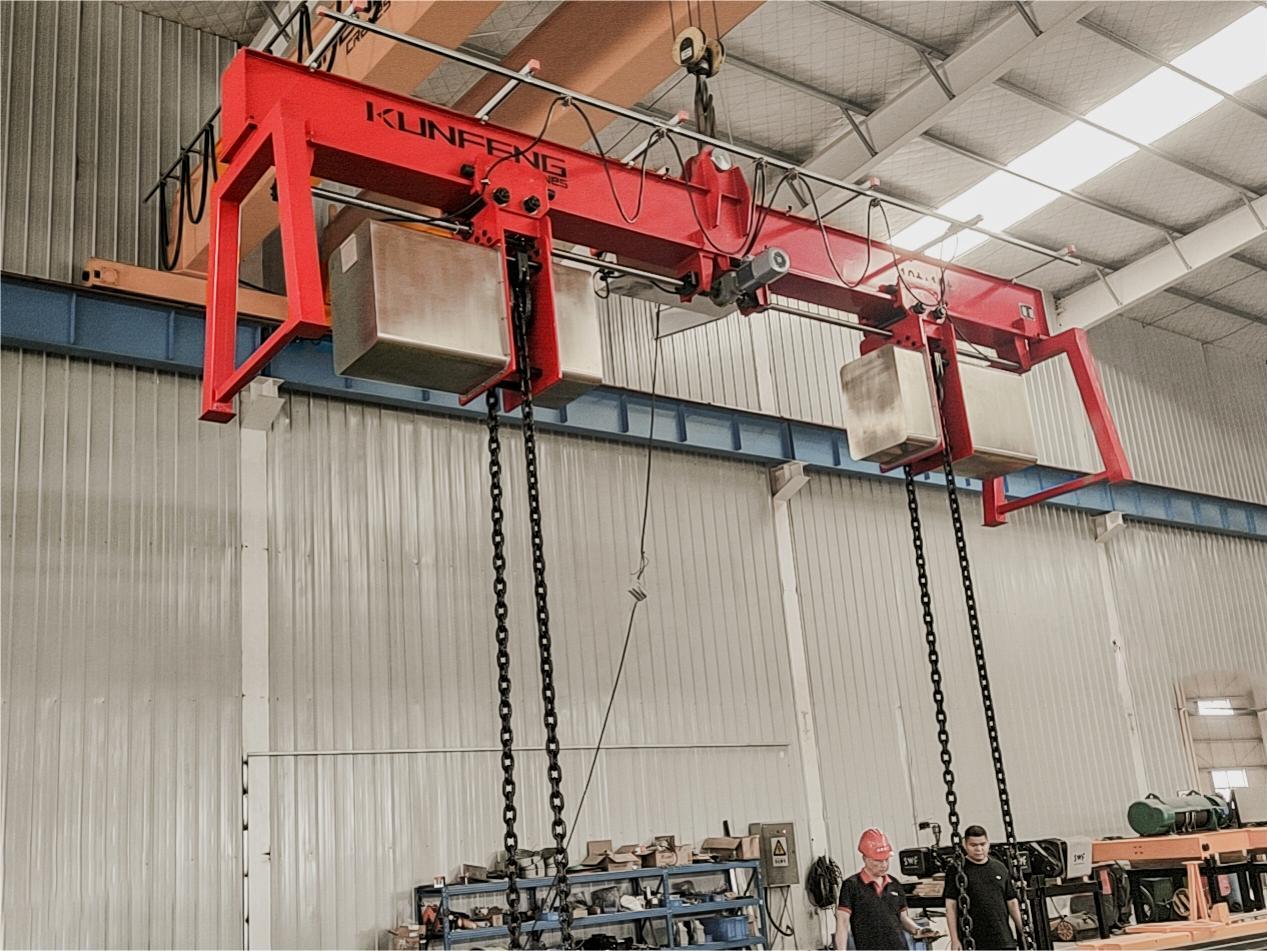

Load flip machine is a crane hook-mounted system that allows for the safe raising, lowering, rotating, and leveling of bulky or oddly shaped objects up to 80 tons.
Universal turning device for fast and safe turning and rotating of heavy beams, profiles, welded parts and general work pieces. The flip machine can be used as a assembly device as well as for welding rotators (welding positioners).
Load flip machines, which also called load turning device, are designed to aid in the assembly or production of various items. These units allow for a 360° rotation of goods, and work in conjunction with overhead or gantry cranes. To use the turning device, it should be suspended from your existing hoist, and web sling attachments must be used to secure the load in place.
Load turning devices are designed to support safe working loads and are commonly used in pairs to ensure stability when rotating larger items. These load flip machines are custom-designed to meet your specific requirements and are manufactured to order.
10 ton Load Turning Device Specifications | ||
Dimensions | 2730*330*1300 | mm |
Electric Power Source | 380 | v |
Lifting Strap Length | 8m*2 | m/piece |
Max Lifting Capacity | 10 | t |
Turning Speed | 4000 | mm/min |
Turning Angle | 360 | degree |
Insurance Factor | 1.2 | times |
Remote Control Battery | 7#*2 | pieces |
Max Rotator Size | 1500*1500 | mm |
Max. Rotator Length | ≤15 | m |
The slings enclose the center of gravity providing a controlled, stable motion. In addition, custom flip solutions can be made based on your requirement. KUNFENG CRANES 360 degree material rotations give fitters and welders the opportunity to focus on significant output, perfect production, and project success guaranteed.
