An Electric Wire Hoist is a lifting device that uses an electric motor to life and lower heavy loads. It consists of a motor, wire rope, and a drum or pulley system. The wire rope is attached to a hook or other lifting attachment, and when the motor is activated, it rotates the drum or pulley to raise or lower the load.

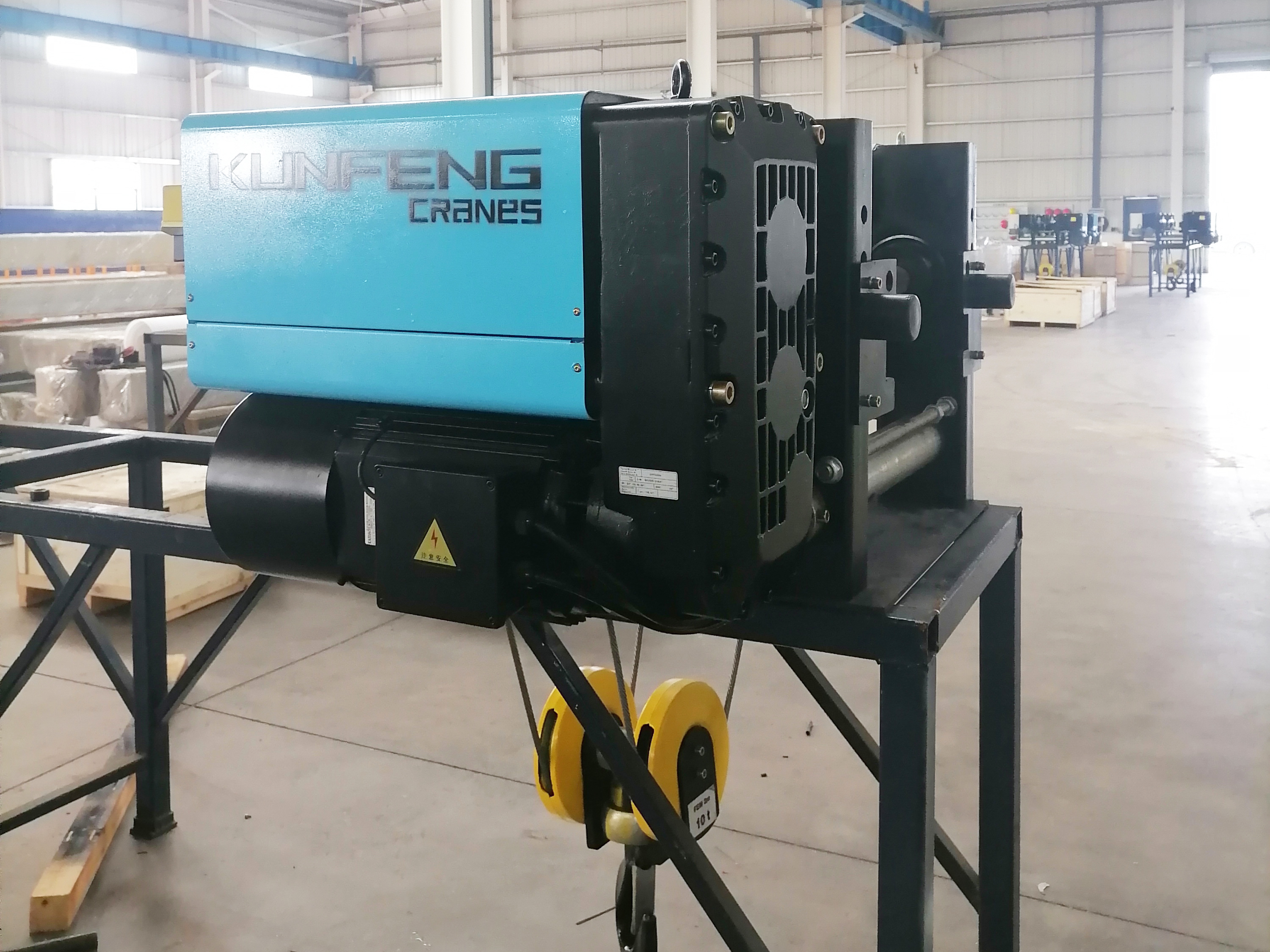

Wire rope hoist, which is also called European-design hoist, refers to the electric hoist that met the FEM standard. It features electromagnetic cone brake and NEMA 3R push-button control pendant. The lightweight, compact hoists lift loads to any height with unlimited length of wire rope that does not accumulate in hoists. Each features cast-aluminum housing and thermal overload protection. Sheaving helps to double the load capacities. Electric wire rope hoists are commonly used in manufacturing construction, and other industries where heavy lifting is required.
TECHNICAL SPECIFICATION OF 30 TON WIRE ROPE CRAB HOIST | |||
Rated Load Capacity | 30 t | Standard Lifting Height (Customizable) | 30 ft/ 9 m |
Speed /min | 0.8 - 3.2 m/min | Number of Speeds | 2 Speed |
Optional Voltages | 3 Phase 380/440-480V 50/60Hz | Power | 38 kw |
Duty Class | H4/M5/2m/Class D | Insulation Grade | F |
IEC Motor Protection | IP55 | Electric Control Box Protection | IP65 |
Control Voltage | 48V | Hoist Motor | Sew Eurodrive |
Hoist Reducer | Sew Eurodrive FA (Optional) | Contactor | Schneider (Optional) |
Transmission | Sew Eurodrive (Optional) | Humidity | <85% |
Temperature | -20°~ 40°C | Trolley Power | 1.5 kw x 2 |
Noise Level | 82 dB | Trolley Speed | 16 ~ 65 ft/min. / 5~20m/min |
KUNFENG CRAENS has the ability to produce wire rope hoist and chain blocks with wide range capacity, from 1 ton to 80 ton. Meanwhile, special wire rope hoist for special environment are acceptable. For example, the explosion-proof hoist in mining industry, pneumatic hoist for Petrochemical industry, stainless steel crane hoist and belt hoist for cleanroom lifting.
Whether you're looking for a wire rope hoist with state-of-the-art or standard functionality, we offer wide solutions to meet our customers' needs. Our Demag wire rope hoists include excellent safety features, high handling rates, and cost-effective operation up to 100 tonnes.
